CIN-T6

Depth:300m | Engine:115HP

Trailer version wheel chassis

About CIN-T6

Compared with the original machine, it has more powerful power and faster efficiency

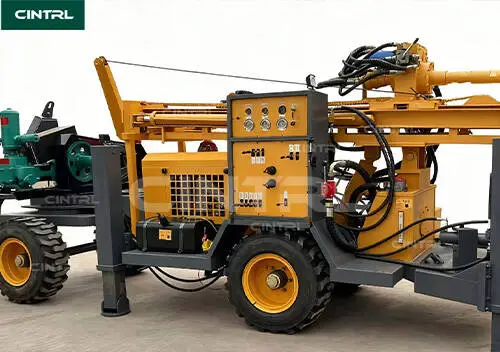

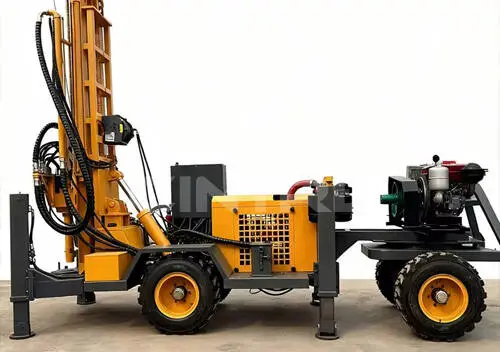

The CIN-T6 wheeled-chassis water well drill rig, standardly equipped with 78kW and 85kW diesel engines, has a maximum drilling depth of 300 meters and is suitable for drilling civil water wells, agricultural irrigation wells, geothermal wells, and precipitation wells, particularly in mountainous areas and rock formations. This rig utilizes state-of-the-art hydraulic technology and a high-torque motor to drive the rotation. It can be used with a mud pump for water drilling or with an air compressor for percussion drilling. The air inlet is adjustable to control the rotation speed as needed, providing ample rotational power to the drill pipe and adapting to drilling in formations of varying hardness.

CIN-T6 Customer Voice

Deep Solutions for Global Water Challenges

Community Water: PW800 drills 800m boreholes in arid Africa, serving 2000 people/day with carbide-bit penetration through basalt. Farm Irrigation: PSW300's high-torque system builds 450mm-diameter wells, delivering 65m³/h flow for 100-hectare farms in 7 days. Geothermal Energy: PW600's 280°C tolerance extracts clean geothermal water with closed-loop tech (EU-certified). Disaster Relief: PH-W200 portable rig deploys in 24hrs, lightweight design drilling hard rock for emergency supply.

Deep Solutions for Global Water Challenges

Community Water: PW800 drills 800m boreholes in arid Africa, serving 2000 people/day with carbide-bit penetration through basalt. Farm Irrigation: PSW300's high-torque system builds 450mm-diameter wells, delivering 65m³/h flow for 100-hectare farms in 7 days. Geothermal Energy: PW600's 280°C tolerance extracts clean geothermal water with closed-loop tech (EU-certified). Disaster Relief: PH-W200 portable rig deploys in 24hrs, lightweight design drilling hard rock for emergency supply.

Get More Resources
  • Machine Viedos
  • Success Stories
  • Get a Quote
  • CIN-T6 Params

  • Drilling depth:

    260-300 m

    Swing torque:

    5500-7500 N.m

  • Engine Model

    YUNNEI/YUCHAI (Optional)

    Engine power

    77kw/85(Optional)

  • The hole diameter

    100-400 mm

    Swing speed

    70-150 rpm

  • Drill pipe diameter

    60/76/89/102 mm

    One-time advance length

    3.3m

  • Drive mode

    Hydraulic drive

    Chassis type

    Wheels

  • Drill pipe length

    2 / 3 m

    Rig lifting force

    15/18 T

  • Fast feeding speed

    60 m/min

    Fast lifting speed

    30m/min

  • Water drilling

    With mud pump

    Air drilling

    With air compressor

  • Walking speed

    2.5 km/h

    Climbing angles

    30 Max.

  • Transport

    5000*1700*2180 mm

    Weight

    4700kg

  • World-renowned Engine

    Use turbocharged engines with global warranty from Weichai Power, China Yuchai International, Cummins, etc.

    High torque output, and can achieve high torque in low speed range.Good fuel atomization effect, full combustion, improved fuel utilization.

    With integrated cylinder head design, turbocharging and energy-saving system.

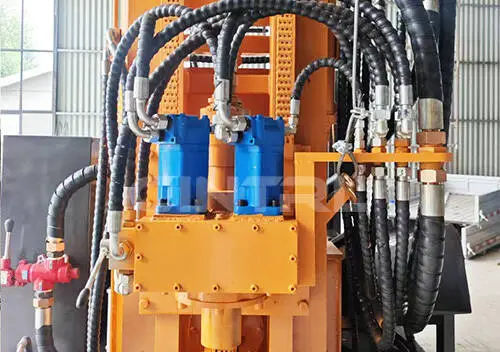

    Equipped with a powerful pneumatic motor, it can provide ultra-high torque to quickly penetrate the hardest materials.

    It can work normally under harsh conditions such as humidity, dust, and high temperature, and is not affected by vibration, electromagnetic and other factors.

    Integrated modular design: The structure is simple and compact, and the accessories are universal.

    Bigger And Stronger Hydraulic Oil Radiator

    The self-developed high-performance radiator with fin-type heat dissipation structure, by increasing the heat dissipation area and combines forced air cooling, water cooling and oil cooling to quickly dissipate heat.

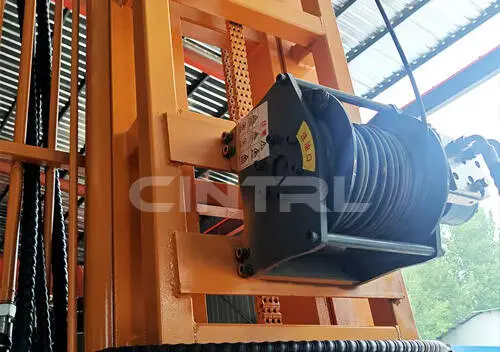

    Hoister - Bidirectional self-locking anti-reversal

    It is easy to lift the drill and there will be no jamming phenomenon.Adopt Self-locking pulley for anti-fall in 2 directions.

    Steel Crawler Chassis With Strong Climbing Ability

    The crawler chassis of the drilling rig adopts a low-speed, high-torque hydraulic motor, which is highly safe and has strong climbing ability. The overall moving speed can reach 2.5km/hour and the climbing ability is 30Max.

    Loading And Shipping

    Available From Stock

    1.Anti-collision package edge: All parts of the machine are covered with some soft materials, mainly the use of pearl wool.

    2.Fumigation wooden box:Our wooden box is fumigated, do not need to check the wood, saving the transport time.

    3.Whole film packaging machine: Avoid all damage that may occur during delivery. Then we will cover the plastic package tightly to ensure that the soft material is covered intact, also avoiding water and rust.The outermost is a wooden box with a fixed template.

    4.Wooden box at the bottom of a solid iron socket for easy handling.

    Customer Cases

    Extreme and efficient products and service experience to win customers' praise and trust.The following images of water well drilling rigs are from customer feedback (Vietnam, Thailand, Chile, Mexico, South Africa, Philippines, Malaysia, Colombia, etc).
