HY2000

1800-2200m | Hydraulic Drive | 12ton

The Maximum Torque Can Reach 5000N.m

About HY2000

Compared with the original machine, it has more powerful power and faster efficiency

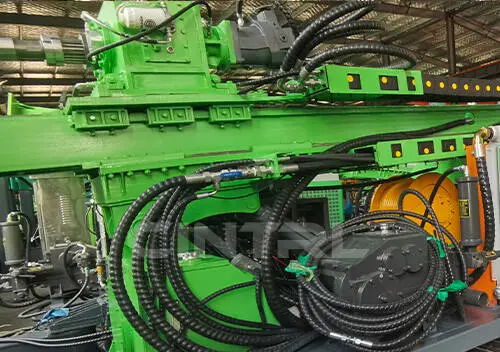

The CINTRL HY2000 core sampling exploration drill rig utilizes a fully hydraulic drive system. The power head is driven by an axial piston pump and a tapered piston motor. It features mechanical two-speed stepless speed regulation, a maximum torque of 5000 Nm, a floating spindle, and a 3-meter drill pipe. The power head is equipped with a lateral translation mechanism, and the mast is raised and lowered by a hydraulic cylinder and slides integrally, enabling drilling within a range of 0-90 degrees. The hydraulic system utilizes load-sensing control, ensuring high efficiency and high torque.

HY2000 Customer Voice

CINTRL Core Rigs in Global Applications

Mineral Exploration: HY2000 achieves 95%+ core recovery in Chile copper deposits with 2000m NTW systems. Geotechnical Engineering: HY600's low-profile rig operates at ≤65dB for urban contaminated sites (EPA-compliant). Energy Prospecting: HY1600 triple-tube tech captures shale gas data with real-time analysis (30% faster).

CINTRL Core Rigs in Global Applications

Mineral Exploration: HY2000 achieves 95%+ core recovery in Chile copper deposits with 2000m NTW systems. Geotechnical Engineering: HY600's low-profile rig operates at ≤65dB for urban contaminated sites (EPA-compliant). Energy Prospecting: HY1600 triple-tube tech captures shale gas data with real-time analysis (30% faster).

Get More Resources
  • Machine Viedos
  • Success Stories
  • Get a Quote
  • HY2000 Params

  • BTW (60)

    2200m

    NTW (75)

    2000m

    HTW (95)

    1800m

  • Engine Model

    Wechai / Cummins Optional

    Drive Mode

    Hydraulic Drive

  • Rated Power

    176 kw Optional

    Max Speed

    1400 rpm

  • Rated Speed

    2200 rpm

    Max Torque

    5000 N.m

  • System Pressure

    32 + 25 MPa

    Driing Angle

    45 - 90 deg

  • Max Flow

    190 ml/r

    Cylinder Stroke

    3500 mm

  • Cooling Mode

    Water Cooling / Air Cooling

    Lifting Power

    600 kN

  • Pump Model

    BW Optional

    Feed Force

    300 kN

  • Max Flow

    160 L/min

    Climbing Angle

    25 deg

  • Max Pressure

    10 Mpa

    Weight

    12 t

  • Mast Height

    8.1 m

    Driving Speed

    2-3 km/h

  • Sliding Listance

    1200 mm

    Dimension

    6100*2200*2500 mm

  • World-renowned Engine

    Use turbocharged engines with global warranty from Weichai Power, China Yuchai International, Cummins, etc.

    High torque output, and can achieve high torque in low speed range.Good fuel atomization effect, full combustion, improved fuel utilization.

    With integrated cylinder head design, turbocharging and energy-saving system.

    Equipped with a powerful pneumatic motor, it can provide ultra-high torque to quickly penetrate the hardest materials.

    It can work normally under harsh conditions such as humidity, dust, and high temperature, and is not affected by vibration, electromagnetic and other factors.

    Integrated modular design: The structure is simple and compact, and the accessories are universal.

    Bigger And Stronger Hydraulic Oil Radiator

    The self-developed high-performance radiator with fin-type heat dissipation structure, by increasing the heat dissipation area and combines forced air cooling, water cooling and oil cooling to quickly dissipate heat.

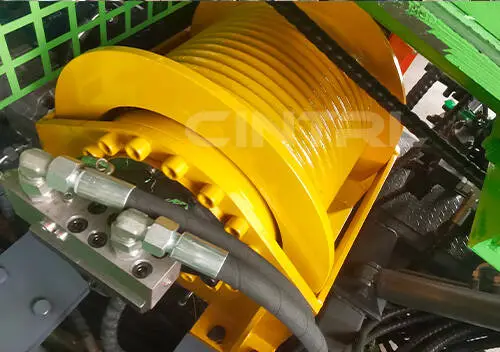

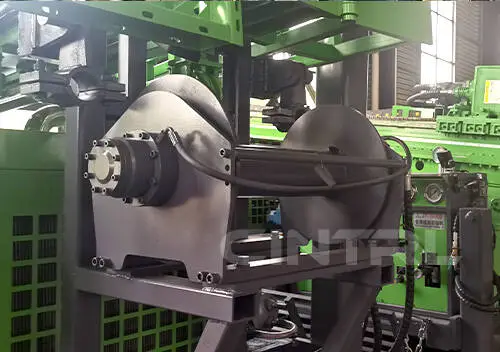

    Hoister - Bidirectional self-locking anti-reversal

    It is easy to lift the drill and there will be no jamming phenomenon.Adopt Self-locking pulley for anti-fall in 2 directions.

    Steel Crawler Chassis With Strong Climbing Ability

    The crawler chassis of the drilling rig adopts a low-speed, high-torque hydraulic motor, which is highly safe and has strong climbing ability. The overall moving speed can reach 2.5km/hour and the climbing ability is 30Max.

    Loading And Shipping

    Available From Stock

    1.Anti-collision package edge: All parts of the machine are covered with some soft materials, mainly the use of pearl wool.

    2.Fumigation wooden box:Our wooden box is fumigated, do not need to check the wood, saving the transport time.

    3.Whole film packaging machine: Avoid all damage that may occur during delivery. Then we will cover the plastic package tightly to ensure that the soft material is covered intact, also avoiding water and rust.The outermost is a wooden box with a fixed template.

    4.Wooden box at the bottom of a solid iron socket for easy handling.

    Customer Cases

    Extreme and efficient products and service experience to win customers' praise and trust.The following images of water well drilling rigs are from customer feedback (Vietnam, Thailand, Chile, Mexico, South Africa, Philippines, Malaysia, Colombia, etc).
