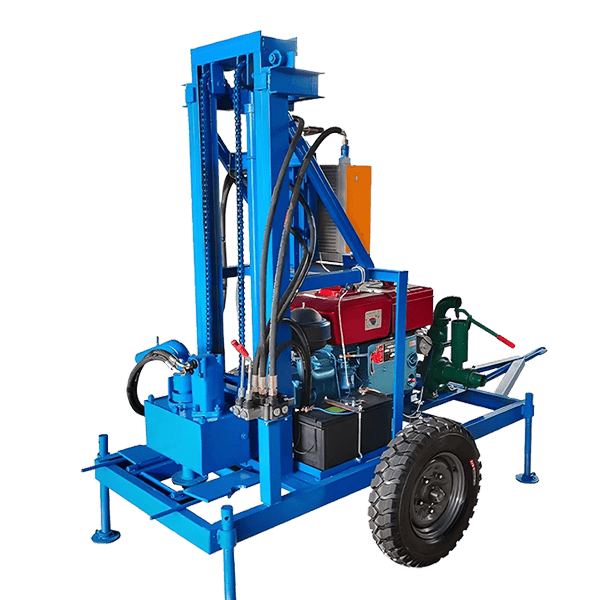

CIN-T1

Depth:200m | 22-32HP

Very cheap home convenience machine

About CIN-T1

Compared with the original machine, it has more powerful power and faster efficiency

The CIN-T1 portable water well drill rig, equipped with an electric starter, is easy and convenient to operate. It utilizes hydraulic principles, features a high-power motor and radiator, ensuring continuous high efficiency. Its reversible power head adapts to complex working conditions. The integrated hydraulic cylinder allows precise control of oil pressure via a joystick, enhancing operational flexibility. The compact layout and integrated water pump ensure excellent deslagging and clean drilling. It is widely used in various applications, including domestic and agricultural drilling.

CIN-T1 Customer Voice

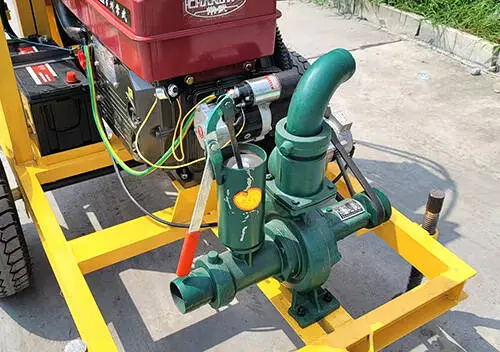

High lift water pump

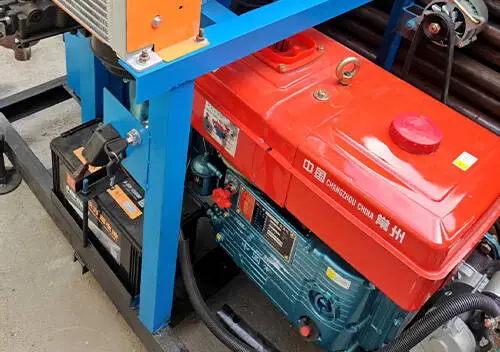

Engine

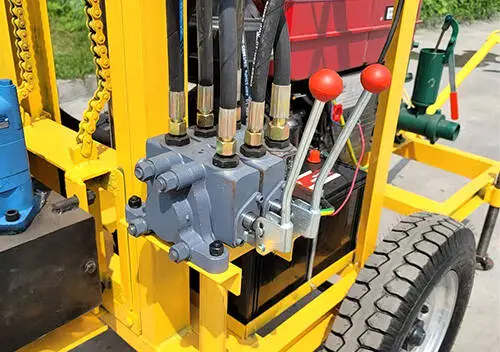

Centralized control

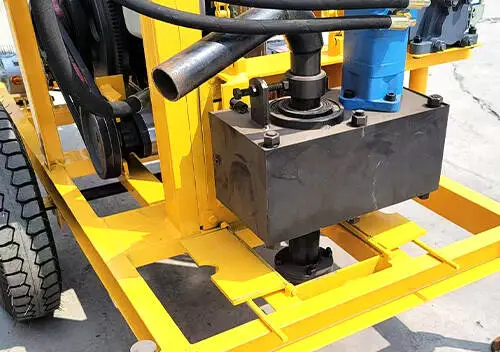

Power head

Convenient and efficient

Machine packaging

Deep Solutions for Global Water Challenges

Community Water: PW800 drills 800m boreholes in arid Africa, serving 2000 people/day with carbide-bit penetration through basalt. Farm Irrigation: PSW300's high-torque system builds 450mm-diameter wells, delivering 65m³/h flow for 100-hectare farms in 7 days. Geothermal Energy: PW600's 280°C tolerance extracts clean geothermal water with closed-loop tech (EU-certified). Disaster Relief: PH-W200 portable rig deploys in 24hrs, lightweight design drilling hard rock for emergency supply.

Deep Solutions for Global Water Challenges

Community Water: PW800 drills 800m boreholes in arid Africa, serving 2000 people/day with carbide-bit penetration through basalt. Farm Irrigation: PSW300's high-torque system builds 450mm-diameter wells, delivering 65m³/h flow for 100-hectare farms in 7 days. Geothermal Energy: PW600's 280°C tolerance extracts clean geothermal water with closed-loop tech (EU-certified). Disaster Relief: PH-W200 portable rig deploys in 24hrs, lightweight design drilling hard rock for emergency supply.

Get More Resources
  • Machine Viedos
  • Success Stories
  • Get a Quote
  • CIN-T1 Params

  • Drilling depth:

    180-200 m

    The hole diameter

    70-300 mm

  • Drill rod length

    1.5 m/pc

    Drill Rod Diameter

    50mm

  • Drilling Speed

    160rpm

    Engine Power

    Diesel 22 HP

  • Chassis

    Wheel/Crawler

    Centrifugal Pump Head

    35 m

  • Centrifugal Pump Flow Rate

    65 m³/h

    Centrifugal Pump Power

    4kw

  • Centrifugal Pump Speed

    2900rpm

    Centrifugal Pump Weight

    23kg

  • Weight

    450kg

    Dimension

    1930 x 1000 x 1820 mm

  • World-renowned Engine

    Use turbocharged engines with global warranty from Weichai Power, China Yuchai International, Cummins, etc.

    High torque output, and can achieve high torque in low speed range.Good fuel atomization effect, full combustion, improved fuel utilization.

    With integrated cylinder head design, turbocharging and energy-saving system.

    Equipped with a powerful pneumatic motor, it can provide ultra-high torque to quickly penetrate the hardest materials.

    It can work normally under harsh conditions such as humidity, dust, and high temperature, and is not affected by vibration, electromagnetic and other factors.

    Integrated modular design: The structure is simple and compact, and the accessories are universal.

    Bigger And Stronger Hydraulic Oil Radiator

    The self-developed high-performance radiator with fin-type heat dissipation structure, by increasing the heat dissipation area and combines forced air cooling, water cooling and oil cooling to quickly dissipate heat.

    Hoister - Bidirectional self-locking anti-reversal

    It is easy to lift the drill and there will be no jamming phenomenon.Adopt Self-locking pulley for anti-fall in 2 directions.

    Steel Crawler Chassis With Strong Climbing Ability

    The crawler chassis of the drilling rig adopts a low-speed, high-torque hydraulic motor, which is highly safe and has strong climbing ability. The overall moving speed can reach 2.5km/hour and the climbing ability is 30Max.

    Loading And Shipping

    Available From Stock

    1.Anti-collision package edge: All parts of the machine are covered with some soft materials, mainly the use of pearl wool.

    2.Fumigation wooden box:Our wooden box is fumigated, do not need to check the wood, saving the transport time.

    3.Whole film packaging machine: Avoid all damage that may occur during delivery. Then we will cover the plastic package tightly to ensure that the soft material is covered intact, also avoiding water and rust.The outermost is a wooden box with a fixed template.

    4.Wooden box at the bottom of a solid iron socket for easy handling.

    Customer Cases

    Extreme and efficient products and service experience to win customers' praise and trust.The following images of water well drilling rigs are from customer feedback (Vietnam, Thailand, Chile, Mexico, South Africa, Philippines, Malaysia, Colombia, etc).
